• Country
• United States of America (USA)

• Manufacturer / Brand
• Microsonics Corporation; Los Angeles (CA)

• Year
• 1980 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 202379

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Other Recorder/Player

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Microphonograph EB-6 - Microsonics Corporation; Los

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

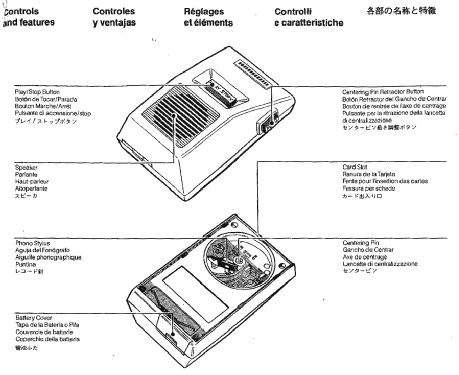

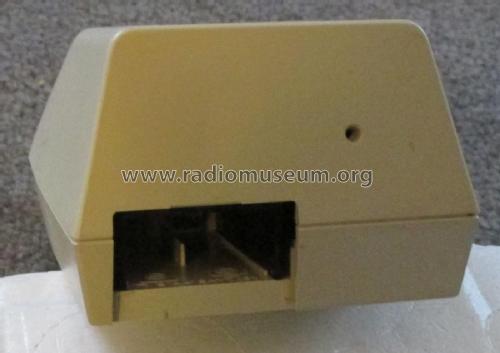

• Portable record player for micro disk records as issued by the National Audubon Society (bird song guides). The micro disk records are mounted on a cassette-like box which is inserted into the player and get centered by a retractable guide pin. The pickup system rotates on a disk within the device while the cassette remains stationary. The same technique was used in Fisher Price "Talk to me books".
