• Country
• United States of America (USA)

• Manufacturer / Brand
• Microwave Devices, Inc.; Farmington, CT

• Year
• 1963

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 355548

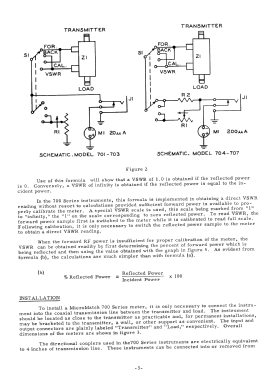

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: MicroMatch Model 700 Series - Microwave Devices, Inc.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 4 x 5 x 3 inch / 102 x 127 x 76 mm

• Notes

• RF Power and Voltage Standing Wave Ratio (VSWR) measuring bridge.

  Frequency range: 20-1000 MHz
  Nominal impedance: 50 ohms
  Power range: 1.2-1200 watts full scale
  Connector type: N

  Seven models covered the following ranges.

  Model	Full Scale Watts	Cut-Off Frequency MHz
  701N	1.2	42
  702N	4	28
  703N	12	20
  704N	40	46
  705N	120	42
  706N	400	28
  707N	1200	20



• Net weight (2.2 lb = 1 kg)
• 2 lb 0 oz (2 lb) / 0.908 kg

• Literature/Schematics (1)
• -- Original-techn. papers. (Installing and Operating MicroMatch RF Power and VSWR Meters Model 700 Series, MCJ 15-1, Feb. 1963)
