• Country
• United States of America (USA)

• Manufacturer / Brand
• Midland International Corporation, Midland Electronics Company; Kansas City, KS, MO

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121313

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 105 - 120; 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

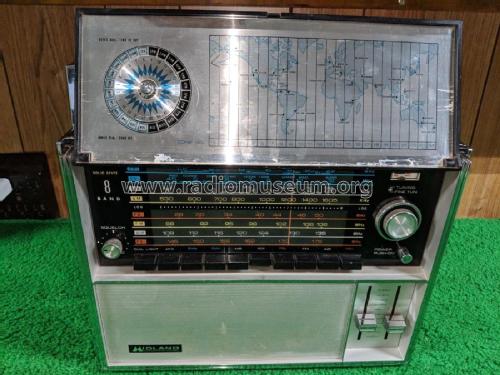

• Model: Solid State 8 Band 10-558 - Midland International

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

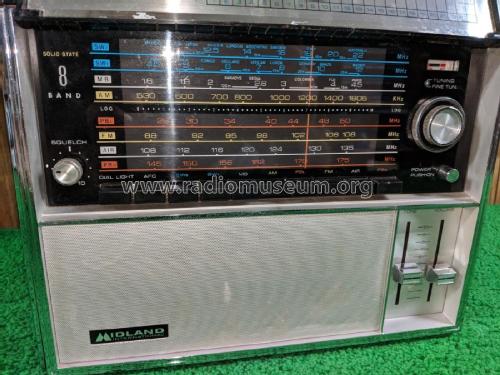

• Eight band radio, MW & FM broadcast band, MB 1,6 to 4,5 MHz, SW1 4,5 to 12 MHz, SW2 11,5 to 22 MHz, PBL 28 to 50 MHz, Air 108 to 135 MHz, PBH 145 - 175 MHz, squelch, dial lamp, AFC and S-meter.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
