75-822

Midland International Corporation, Midland Electronics Company; Kansas City, KS, MO

Data
Forum
Pictures
Collections

  • Year
  • 1999 ??
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 329989

 Technical Specifications

  • Main principle
  • Transceiver
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Batteries / addl. power jack / AA: 8 x 1.5 or 13.8 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.5 inch = 3.8 cm
  • Power out
  • 0.45 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

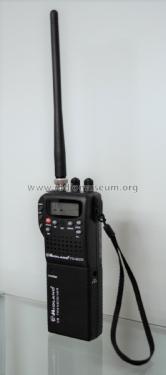

  • Model: 75-822 - Midland International
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.75 x 6.5 x 1.5 inch / 70 x 165 x 38 mm
  • Notes

  • Features Include:
    • 40 CB Channels
    • 10 Weather Channels
    • 5 Memory Channels
    • Memory Scan
    • Dual/Watch
    • Portable and Mobile CB (2-in1)
    • HI/LOW Power
    • Auto Power Save
    • Instant Ch 9. and 19
    • Backlit LCD

    CB Specifications

    Channels 1 through 40

    Frequency range: 26.965 to 27.405 MHz

    Frequency tolerance: 0.005%

    Frequency control: digital phase locked loop

    Frequency resolution: 10 KHz steps

    Power Output 4 W nominal

    Modulation 90% +/- 5%

    TX Distortions <5%

    Spurious and Harmonics <-60dBc

    Receiver Sensitivity 0.7 uv for 10dB S/N

    Audio Output 450 mW

    Selectivity 50 dB

    Weather Receiver Specifications
    Channel Frequency
    00 163.275
    01 162.550
    02 162.400
    03 162.475
    04 162.425
    05 162.450
    06 162.500
    07 162.525
    08 161.650
    09 161.775
    Sensitivity 0.7uV for 20dB S/N



  • Net weight (2.2 lb = 1 kg)
  • 0.5 kg / 1 lb 1.6 oz (1.101 lb)
  • Author
  • Model page created by Serioja Tatu. See "Data change" for further contributors.
