• Country
• United States of America (USA)

• Manufacturer / Brand
• Midwest Radio Co., The, (Miraco); Cincinnati, OH

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47079

• • Brand: Miraco

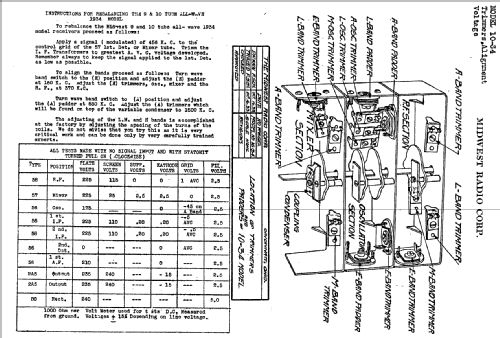

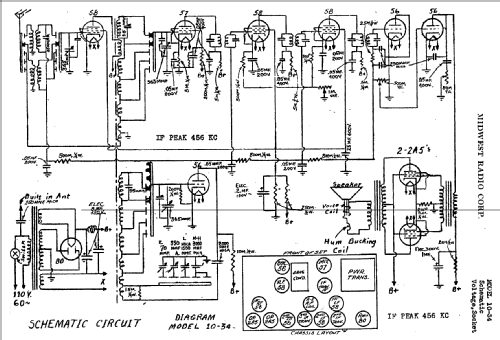

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 58 56 57 58 58 56 56 2A5 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Chassis 10-34 - Midwest Radio Co., The, Miraco

• Shape
• Chassis only or for «building in»

• Notes
• Used in console model F-10(1934).

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Other Models

• Here you find 317 models, 181 with images and 214 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Midwest Radio Co., The, (Miraco); Cincinnati, OH
