• Country
• United States of America (USA)

• Manufacturer / Brand
• Midwest Radio Co., The, (Miraco); Cincinnati, OH

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47122

• • Brand: Miraco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6K7 6C5 6J7 6L7 6G5 6K7 6K7 6H6 6C5 6C5 6N6 6N6 6N6 6N6 80 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org

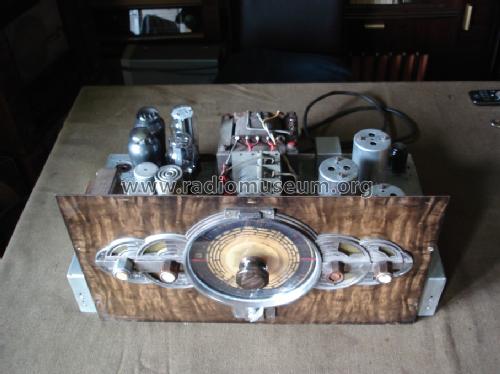

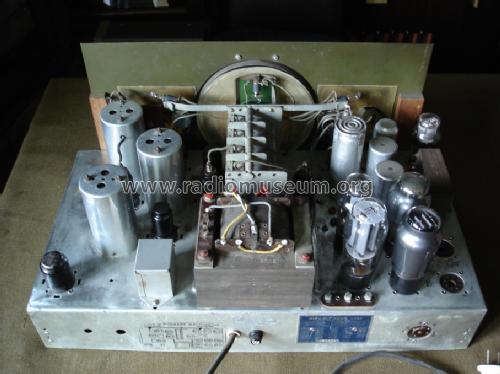

• Model: Chassis 16-37AC - Midwest Radio Co., The, Miraco

• Shape
• Chassis only or for «building in»

• Notes
• Round dial.

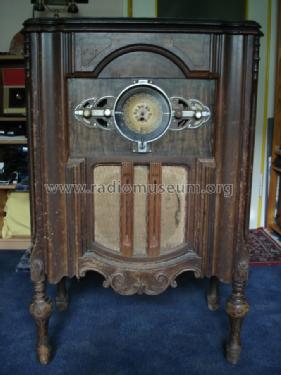

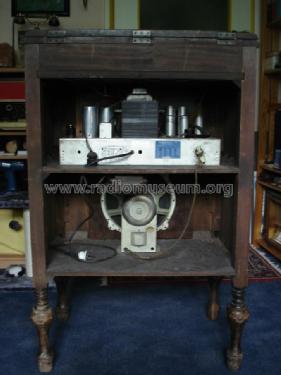

  Bunis and Grinder call it a console, but this is a chassis used in console cabinets S-16, T-16, U-16. See there.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
