Miraco 16-33
Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155881
-
- Brand: Miraco

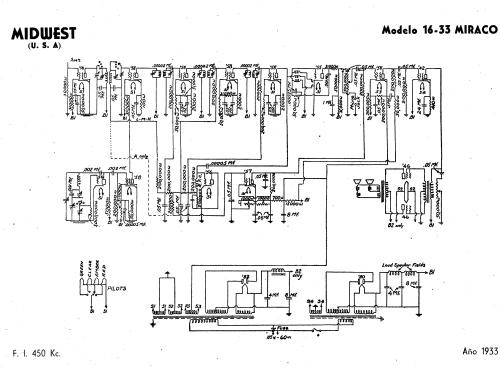

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Main principle
- Superhet with RF-stage; ZF/IF 450 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Miraco 16-33 - Midwest Radio Co., The, Miraco
- Shape
- Console with any shape - in general
- Notes
- Two speaker, both with field coil. "Statomit" noise suppressor. Automatic Volume Control. Push-pull output amplifier. Untuned RF stage. Oscillator power amp. There are four controls and we think there is a band switch mounted co-axially with the tuning knob in the center under the bezel window (escutcheon). Dimension of the chassis is 21.5" x 11 hight (including the wood panel) x 13". There is a power transformer, a choke and two AF transformers (output is near the two 46 tubes in the lower right corner).
- Source of data
- - - Manufacturers Literature
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6 = 1935 and before (Esquema original da marca)
- Author
- Model page created by João Luis Mendes Colaço. See "Data change" for further contributors.
