RT-12 Ch.= RGL-12 AM only
Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 231057
-
- Brand: Miraco
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: RT-12 Ch.= RGL-12 [AM only] - Midwest Radio Co., The, Miraco
- Shape
- Console with any shape - in general
- Notes
-
AC Operated Five Band Superheterodyne Receiver with Loop Antenna
MW: 540-1600KC
SW: 1.6-4,75MC, 4.7-10.1MC; 10.8-22.1MC
MW: 145-420KC
- Mentioned in

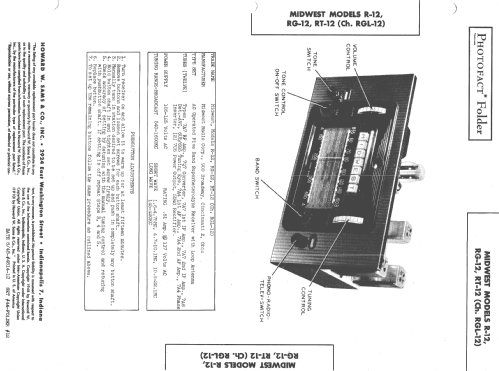

- Photofact Folder, Howard W. SAMS (Vol 5/48 8/48 4814-12 Set 44 Folder 12)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
