SW-Converter Table set (wood) tetrode input
Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Midwest Radio Co., The, (Miraco); Cincinnati, OH
- Year
- 1931/1932
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 229204
-
- Brand: Miraco
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- RF Converter/Adapter (not voltage converter)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org

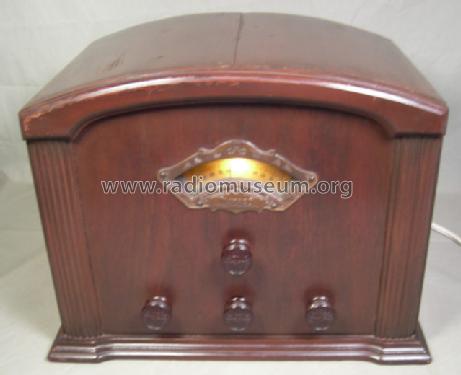

- Model: SW-Converter Table set [tetrode input] - Midwest Radio Co., The, Miraco
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 15 x 11.25 x 10.5 inch / 381 x 286 x 267 mm
- Notes
-
SW-Converter. Best guess (from photos) for tube complement: 24 (mixer), 27 (oscillator), 27 (IF out), 80 (rectifier).
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
