• Country
• United States of America (USA)

• Manufacturer / Brand
• Midwest Radio Co., The, (Miraco); Cincinnati, OH

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 47291

• • Brand: Miraco

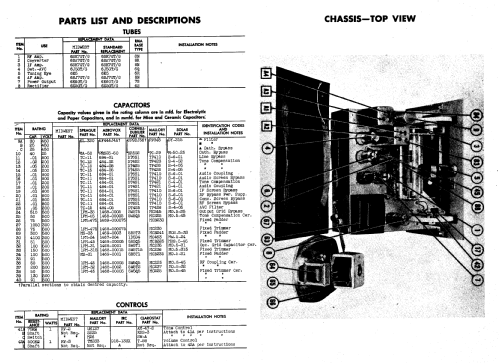

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6J5G 6E5 6SJ7GT 6K6G 6X5G

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TM8 Ch= STM8 - Midwest Radio Co., The, Miraco

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
