• Country
• United States of America (USA)

• Manufacturer / Brand
• Midwest Radio Co., The, (Miraco); Cincinnati, OH

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117383

• • Brand: Miraco

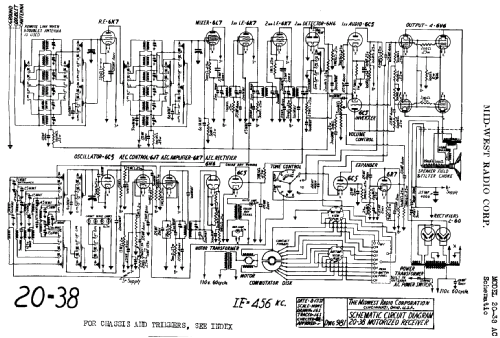

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6K7 6C5 6J7 6K7 6H6 6C5 6L7 6K7 6K7 6H6 6C5 6C5 6V6 6V6 6V6 6V6 6C5 6R7 80 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: WW-20 Ch= 20-38 AC - Midwest Radio Co., The, Miraco

• Shape
• Console with any shape - in general

• Notes
• 6 bands. AFC. Motor tuning. Dynamic expander.

• Source of data
• Pre-War Consoles

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
