• Country
• United States of America (USA)

• Manufacturer / Brand
• Mignon Wireless Corp., Elmira, NY

• Year
• 1917 ?

• Category
• Radio module pre 1926 (not a part, not a key)

• Radiomuseum.org ID
• 203766

• Main principle
• Tuner pre 1926 (not a wave trap)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material

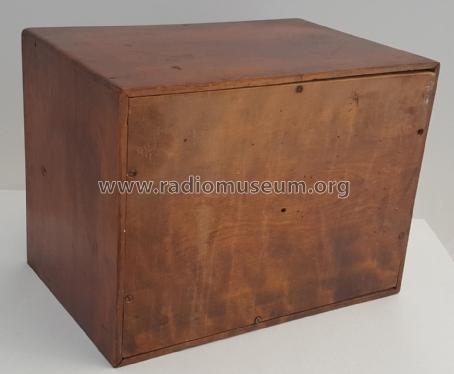

• Wooden case

• from Radiomuseum.org

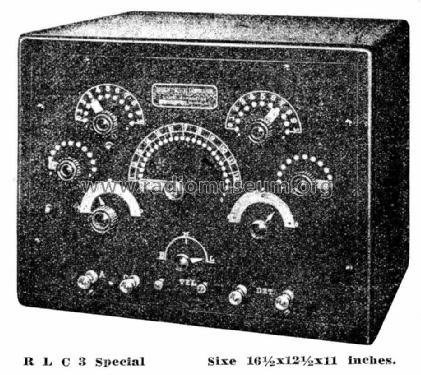

• Model: RLC3 Special - Mignon Wireless Corp., Elmira,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 16.5 x 12.5 x 11 inch / 419 x 318 x 279 mm

• Notes
• The Mignon Wireless Corporation Type RLC3 Special Long Wave receiver had a wavelength capacity of 10,000 meters.

• Price in first year of sale
• 45.00 $

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)

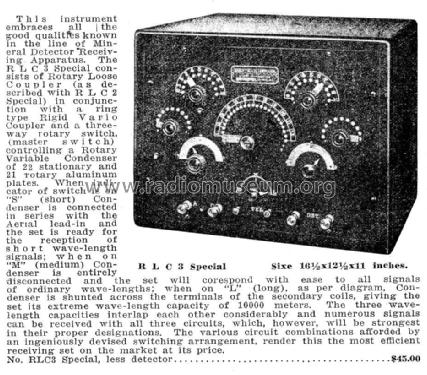

• Circa 1917 William Duck Catalog

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 11 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
