Netzanschlussgerät N691
Mikrofontechnik Gefell, VEB - Microtech Gefell GmbH; Gefell (Thüringen)
- Country
- Germany
- Manufacturer / Brand
- Mikrofontechnik Gefell, VEB - Microtech Gefell GmbH; Gefell (Thüringen)
- Year
- 1985 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 107286
-
- alternative name: Microtech Gefell GmbH
Typenschild
N 691

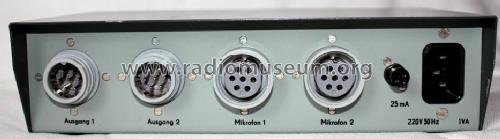

N 691-Rueckw.
N 691-Innen
Seriennummer 22132
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Netzanschlussgerät N691 - Mikrofontechnik Gefell, VEB -
- Notes
- Netzanschlussgerät für 2 Mikrofone in Transistortechnik (z.B. PM860), 2 Ausgänge.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
