Kondensatormikrofon PM750
Mikrofontechnik Gefell, VEB - Microtech Gefell GmbH; Gefell (Thüringen)
- Country
- Germany
- Manufacturer / Brand
- Mikrofontechnik Gefell, VEB - Microtech Gefell GmbH; Gefell (Thüringen)
- Year
- 1978
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 113307
-
- alternative name: Microtech Gefell GmbH
Das Mikro auf dem mitgelieferten Tischstativ
Werbung in RFE 11/1984, S.745

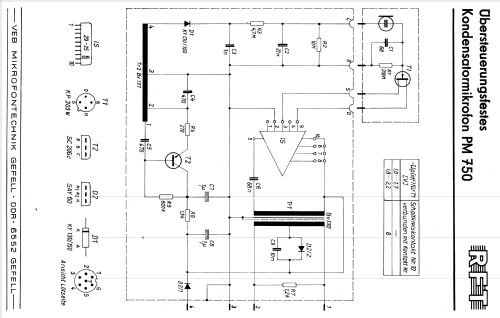

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Kondensatormikrofon PM750 - Mikrofontechnik Gefell, VEB -
- Dimensions (WHD)
- 50 x 240 x 50 mm / 2 x 9.4 x 2 inch
- Notes
- Übersteuerungsfestes Kondensatormikrofon für den Bühneneinsatz, Druckgradientenempfänger, Richtcharakteristik: Nierenförmig, 40 ... 16000 Hz, integrierter Mikrofonvorverstärker, Phantomspeisung. Mikrofonverstärker halbleiterbestückt.
- Net weight (2.2 lb = 1 kg)
- 0.7 kg / 1 lb 8.7 oz (1.542 lb)
- Source of data
- - - Manufacturers Literature
- Mentioned in
- Radio und Fernsehen (DDR) (Werbung in RFE 11/1984, S. 745)
