- Country
- Germany
- Manufacturer / Brand
- Militär (verschiedene Hersteller gleicher Modelle)
- Year
- 1939–1945
- Category
- Military Receiver
- Radiomuseum.org ID
- 117295
-
- alternative name: WEHRMACHT
FuG10 E10aK, Ln 26 594-1

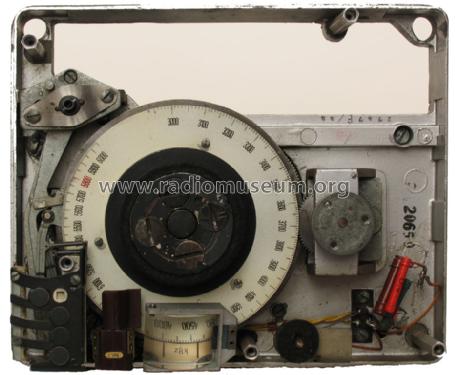

FuG 10 EaK - Bauart Lorenz, Frontansicht
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Valves / Tubes
- RV12P2000
- Main principle
- Superhet with RF-stage; ZF/IF 1460 kHz; 1 AF stage(s)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 29 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: E10aK - Militär verschiedene
- Shape
- Rack
- Dimensions (WHD)
- 222 x 186 x 206 mm / 8.7 x 7.3 x 8.1 inch
- Notes
- Wehrmachtgerät. A1/A3-Empfänger als Bestandteil der FUG10-Flugzeug-Bordanlage. Frequenzbereich 3-6 MHz. Entwickelt von Lorenz. Verbesserte Version des Empfängers E10K: Schwundregelung; in NF-Endstufe zwei Röhren parallel. Anforderungszeichen Ln 26 594-1
- Net weight (2.2 lb = 1 kg)
- 7.6 kg / 16 lb 11.8 oz (16.74 lb)
- Mentioned in
- Bordfunkgeräte - Vom Funkensender zum Bordradar (Geräte Handbuch D(Luft)T 4005/2, Arb. Unterl. D10)
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
