• Country
• Great Britain (UK)

• Manufacturer / Brand
• MILITARY U.K. (different makers for same model)

• Year
• 1940 ??

• Category
• Military Equipment (not Re, Tr or RXT)

• Radiomuseum.org ID
• 187082

• Number of Tubes
• 1

• Valves / Tubes
• VU39

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

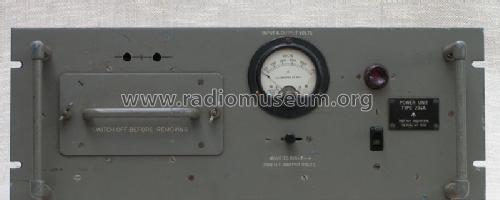

• Model: Power Unit 234A - MILITARY U.K. different makers

• Shape
• Rack

• Dimensions (WHD)
• 19 x 7 x 10 inch / 483 x 178 x 254 mm

• Notes
• The power unit, type 234A, is for use with receiver, type R.1392 to provide the H.T. and valve heater supplies when the receiver is operated from A.C. mains. This type has also been used for other types of receivers of the British Airministry like the R.1132. Powerinput : 200 to 250 volts AC 50 cps. 60 Watts. Output : 210 volts, 55 mA, DC HT-supply and 6,3 volts, 3,5 amperes AC valve heatersupply There are two different types of this power supply, one with meter and one without meter.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Jan Poortman. See "Data change" for further contributors.
