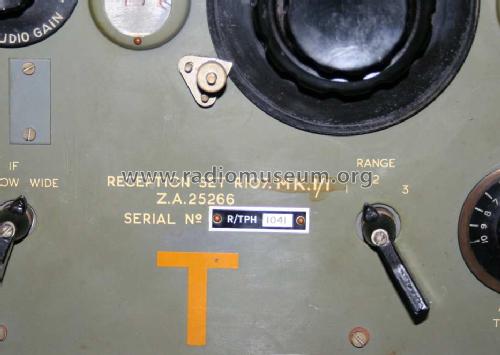

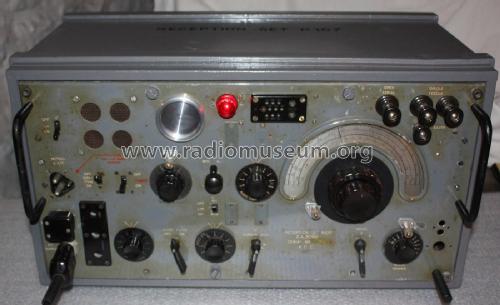

Reception Set R. 107
MILITARY U.K. (different makers for same model)
- Country
- Great Britain (UK)
- Manufacturer / Brand
- MILITARY U.K. (different makers for same model)
- Year
- 1940 ?
- Category
- Military Receiver
- Radiomuseum.org ID
- 137305
T version (tropicalised)
GB_MILITARY UK_reception set R107
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s); none
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 12; 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Reception Set R. 107 - MILITARY U.K. different makers
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 24 x 13 x 17.3 inch / 610 x 330 x 439 mm
- Notes
- WW2 military receiver, usually associated with a transmitter WS.12 or WS.33. Three tuned R.F. circuits, BFO, switchable bandwith, noise limiter.
- Net weight (2.2 lb = 1 kg)
- 48.5 kg / 106 lb 13.3 oz (106.828 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Nikolaus Löwe. See "Data change" for further contributors.
