• Country
• Great Britain (UK)

• Manufacturer / Brand
• MILITARY U.K. (different makers for same model)

• Year
• 1940

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 203771

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ARP12 ARP37 ARP12 ARP12 ARP12 ARP12 ARP12 AR8

• Main principle
• Transceiver; ZF/IF 465 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Dry Batteries / 150 & 3 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

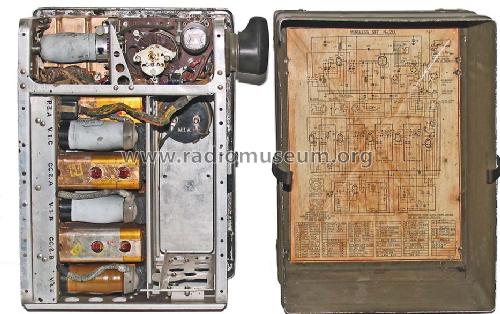

• Model: Wireless Set No.28 - MILITARY U.K. different makers

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 7 x 12.25 x 11 inch / 178 x 311 x 279 mm

• Notes
• Wireless Set No. 28: Short range man-pack transceiver covering 6 - 9 MHz, AM (A3) and CW (A1), p_out 0,25 Watt telephony;
  powered by LT 3 V and HT 150 V dry batteries; used by British Army infantry for short range communications between company and battalion HQ or carried as man-pack on march;rod aerial up to 10 foot.
  The Wireless Set No.28 was produced by Murphy in a small troop trial batch around 1940, it featured an aluminum chassis and was considerably lighter but less stable then the original Wireless Set No.18, due to it's completely different layout with two more valves, it used considerably more battery power.

• Mentioned in
• Wireless for the Warrior Vol. 1, L. Meulstee

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
