• Country
• Great Britain (UK)

• Manufacturer / Brand
• MILITARY U.K. (different makers for same model)

• Year
• 1944 ?

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 256093

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ARP12 ARP12 ARP12 ARP12 ATP4 ATP4

• Number of Transistors

• Semiconductors
• G629C

• Main principle
• Transceiver; ZF/IF 285 kHz; Reflex

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

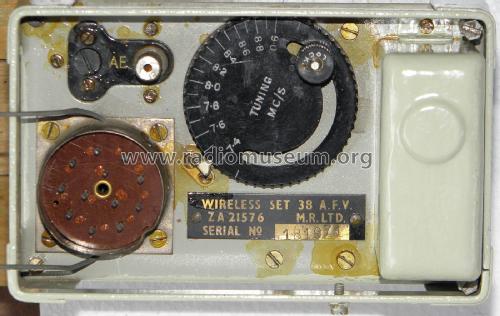

• Model: Wireless Set No. 38 [AFV] - MILITARY U.K. different makers

• Dimensions (WHD)
• 6.5 x 4 x 10.5 inch / 165 x 102 x 267 mm

• Notes

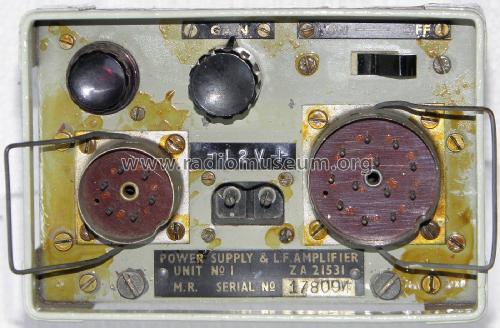

• Short range AFV set for communication to infantry equipped with Wireless Set No. 38. It was developed for incorporation in an existing No. 19 Set installation. The set was principally a modified Wireless Set No. 38 Mk.II* powered by a separate Power Supply and LF Amplifier No. 1. Frequency range 7.3-9MHz.

• Mentioned in
• Wireless for the Warrior; L.Meulstee

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Louis Meulstee. See "Data change" for further contributors.
