Ricetrasmettitore ER 95-A/I
MILITARY Italy (different makers for same equipm.)
- Country
- Italy
- Manufacturer / Brand
- MILITARY Italy (different makers for same equipm.)
- Year
- 1980 ??
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 259766
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 11500 kHz
- Wave bands
- Short Wave (SW) and FM or UHF.
- Power type and voltage
- Dry Batteries / 22-30 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 1.5 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ricetrasmettitore ER 95-A/I - MILITARY Italy different
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 269 x 98 x 315 mm / 10.6 x 3.9 x 12.4 inch
- Notes
-
La stazione radio RV3/13/P era una stazione radio portatile a spalla dell'esercito italiano.
Comprende
Il ricetrasmettitore ER 95-A/I

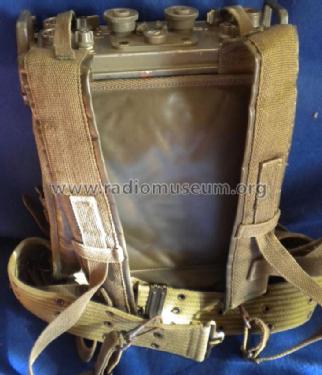

Spallaccio

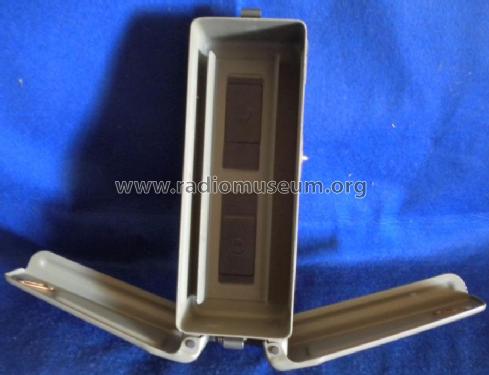

Contenitore batterie KO-410-A
Antenna 264 cm AN-224A
Antenna 77 cm AN-225A
Giunto orientabile EA-53A
Microtelefono H-33/PT
Cuffia-labbrofono
Pettorale AN-GSA-6/I
Batterie a secco PS-28

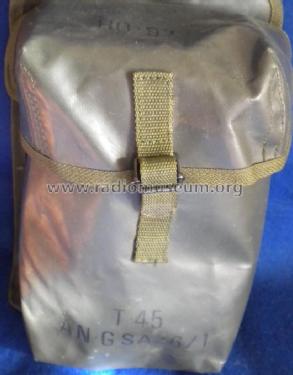

Borsa H0-57A
Borsa H0-97Produttore possibile: Philips
- Net weight (2.2 lb = 1 kg)
- 6.6 kg / 14 lb 8.6 oz (14.537 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Stefano Cerchi. See "Data change" for further contributors.
