• Country
• Italy

• Manufacturer / Brand
• MILITARY Italy (different makers for same equipm.)

• Year
• 1947 ??

• Category
• Military Receiver

• Radiomuseum.org ID
• 200245

• Number of Tubes
• 9

• Valves / Tubes
• 6C5 6C5 6F6 6K7 6K7 6K7 6K7 6L7 6R7

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 12-14 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

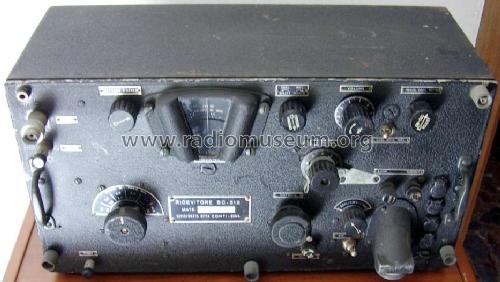

• Model: Ricevitore BC-312 - MILITARY Italy different

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 460 x 240 x 230 mm / 18.1 x 9.4 x 9.1 inch

• Notes
• Ricevitore BC-312, coverage 1.5 - 18 MHz in six ranges, AM/CW (BFO).
  Built-in DM-17A or DM-21 dynamotor. Mainly used for vehicular installation.
  After WWII Italian military forces made use of surplus communication equipment left by Allied troops. In some cases the sets were modified with the replacement of English labels with Italian ones on the panel. Sets were anyway built by US manufacturers, but several Italian contractors overhauled lots of receivers, adding Italian inscriptions. Sometimes the original labels, with the exact model reference, were retained. In other cases original labels were replaced by new ones with generic model indication.

• Net weight (2.2 lb = 1 kg)
• 65 lb (65 lb 0 oz) / 29.510 kg

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
