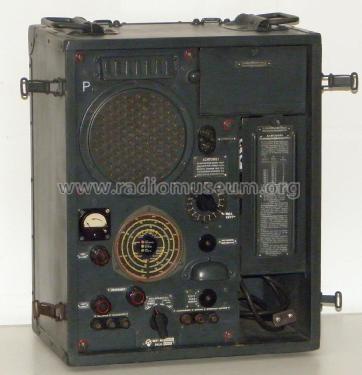

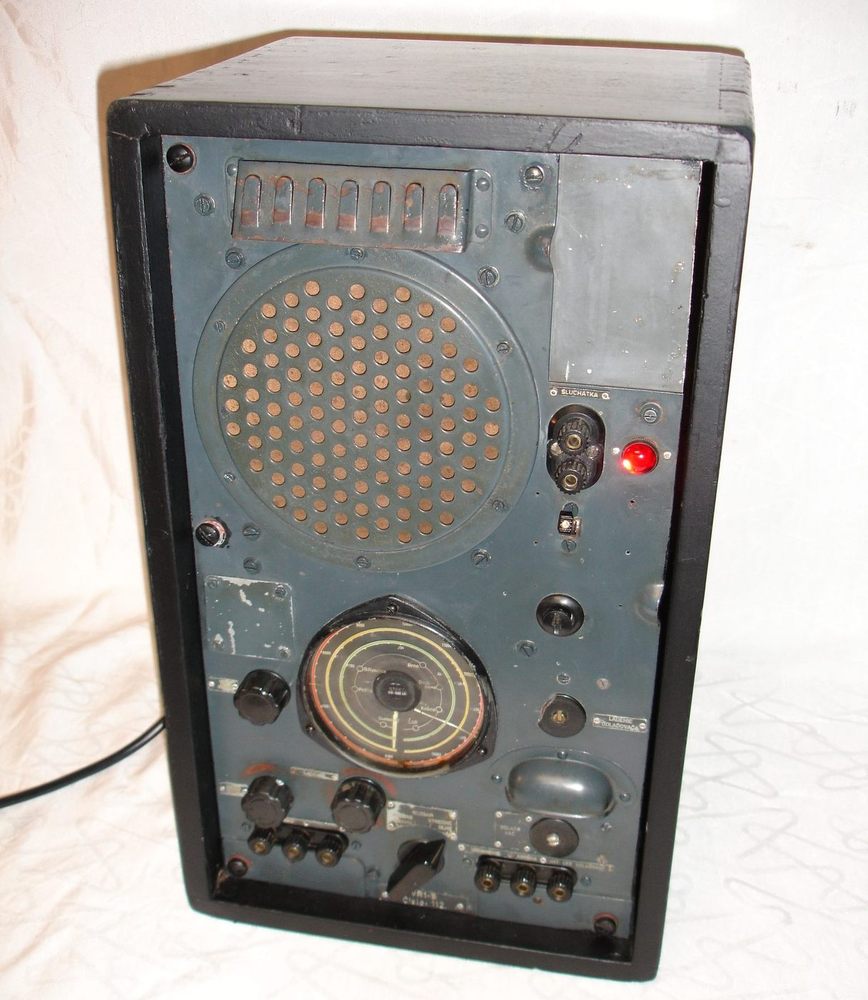

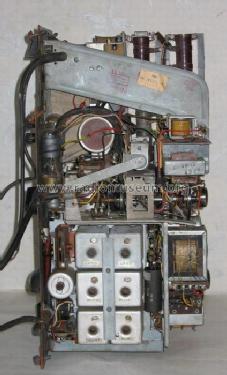

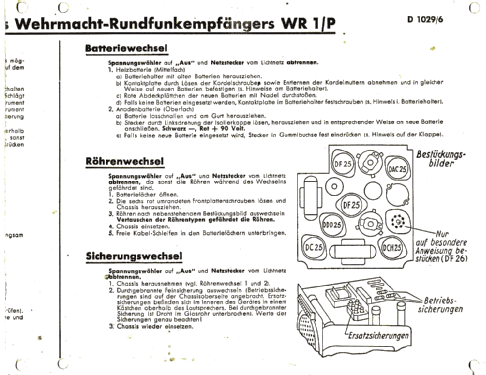

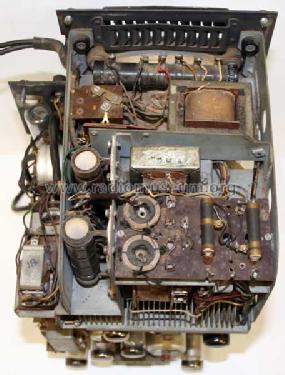

Wehrmacht-Rundfunkempfänger "Rudi" WR1/P

• Country
• Germany

• Manufacturer / Brand
• Militär (verschiedene Hersteller gleicher Modelle)

• Year
• 1941 ?

• Category
• Military Receiver

• Radiomuseum.org ID
• 637

• • alternative name: WEHRMACHT

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• DCH25 DF25 DF25 DAC25 DC25 DDD25 DF26 U518H

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / AC/DC: 90-250 / Batt: 2 x 1,25 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Wehrmacht-Rundfunkempfänger "Rudi" WR1/P - Militär verschiedene

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 395 x 458 x 283 mm / 15.6 x 18 x 11.1 inch

• Notes

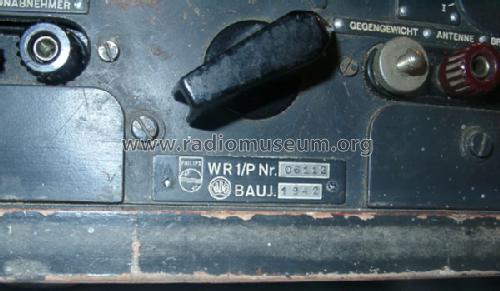

• Wehrmachtgerät. Diode; Feldstärkeanzeige. Von Blaupunkt und/oder Philips hergestellt? Von wem noch? WR1/P (Rudy) was manufactured by Philips. My sources say "Philips Deutschland". Blaupunkt model was WR1 (this is on the label) though here and there it was called WR1/T. We have both models at RKK Radio Museum in Moscow, Russia.

  Frequency ranges:
  LW: 150 ÷ 425 kHz (2,000 ÷ 706m.)
  MW: 517 ÷ 1540 kHz (580 ÷ 195 m.)
  SW: 6.0 ÷ 15.5 MHz (50 ÷ 19.4 m.)
  With the insertion of the group of coils available on request it is possible to receive these special wave ranges:
  SW II: 21.7 ÷10.5 MHz (13.8 ÷28.5 m.)
  SW III: 10.5 ÷ 4.6 MHz (28.5 ÷ 65.0 m.)
  SW IV: 4.6 ÷ 1.5 MHz ( 65 ÷ 200 m.)

  This device can also be powered in alternating voltage with any value between 90 and 250 V, it does not require a voltage change.

  Jack for pick-up and earphone. With a microphone and adding a tube it can works as an amplifier.

  Weight: Without batteries 26 kg - with batteries 32 kg.
  Courtesy of "Radiosurplus Ieri e Oggi", Italy  by Umberto Bianchi†

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Mentioned in
• Funkgeschichte der GFGF (8863)

• Literature/Schematics (1)
• Museums Bote, Österr. (Heft 132/2005, S.9 ff, Gerätebeschreibung)

• Literature/Schematics (2)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie" (Bd.III, S.49, Ausgabe 1949)

• Literature/Schematics (3)
• Radiosurplus Ieri e Oggi, Italy CD editor, by Umberto Bianchi, 1982
