Amplificatore RF DX Hunter - MS 1500
MILAG Elettronica Srl - Giovanni Lanzoni; Milano
- Country
- Italy
- Manufacturer / Brand
- MILAG Elettronica Srl - Giovanni Lanzoni; Milano
- Year
- 1976 ??
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 342240
- Number of Tubes
- 1
- Valves / Tubes
- 3-500Z
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Amplificatore RF DX Hunter - MS 1500 - MILAG Elettronica Srl -
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 430 x 190 x 330 mm / 16.9 x 7.5 x 13 inch
- Notes
-
Amplificatore RF con frequenza di lavoro da 3,5 a 30 MHz in sei bande.
Potenza: CW: 1,2 kW; SSB: 1,5 kW; AM: 0,5 kW.
Strumento per misura di: Potenza diretta - Potenza riflessa - Corrente di placca - Tensione di placca.
- Mentioned in

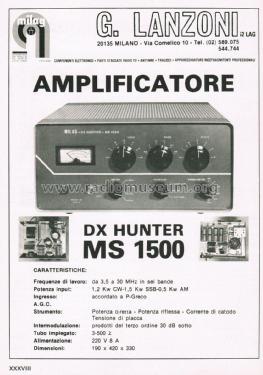

- -- Original prospect or advert (“Radio Rivista” organo ufficiale dell’ARI Italia, numero 2, febbraio 1976.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
