Portable Recorder Filmgraph FR

Miles Reproducer Co., Inc.; New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1946
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 223329

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Other Recorder/Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Portable Recorder Filmgraph FR - Miles Reproducer Co., Inc.;
  • Dimensions (WHD)
  • 11 x 9 x 13 inch / 279 x 229 x 330 mm
  • Notes

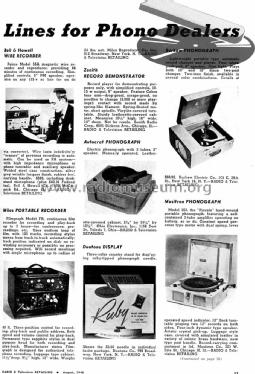

  • Miles Portable Recorder. Filmgraph Model FR, continuous film recorder for recording and play-back up to 3 hours - for conferences, proceedings, etc. Uses endless loop of film, with 100 tracks, recording stylus moves from track-to-track automatically; track position indicated on dial; no rewinding necessary or possible; no processing required. Will record meetings with single microphone up to radius of 40 ft. Three-position control for recording, play-back and public adress. Both speed and volume control for play-back. Permanent type sapphire stylus in dual purpose head for both recording and play-back. Manufacturer states Filmgraph is designed for authorized telephone recording. luggage type cabinet, 11 1/2 " deep, 9 1/2 " high, 13 " wide. Weighs 24 lbs. net.
  • Net weight (2.2 lb = 1 kg)
  • 24 lb (24 lb 0 oz) / 10.896 kg
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
