Dual Channel Amplifier AM-42-FRC
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1944 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 339402
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Dual Channel Amplifier AM-42-FRC - MILITARY U.S. different makers
- Shape
- Rack
- Dimensions (WHD)
- 17.25 x 5 x 10 inch / 438 x 127 x 254 mm
- Net weight (2.2 lb = 1 kg)
- 19.7 lb (19 lb 11.2 oz) / 8.944 kg
- Mentioned in

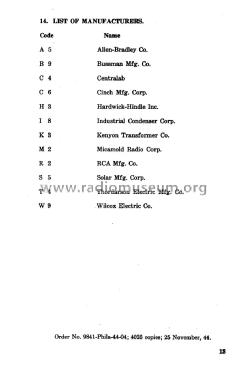

- -- Original-techn. papers. (TM 11-2520)
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
