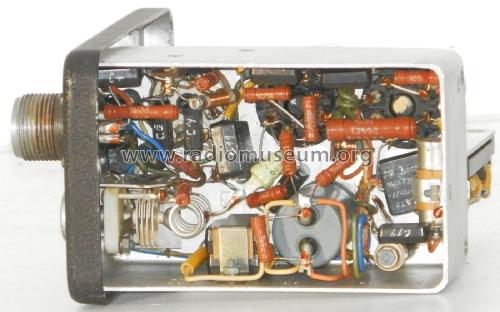

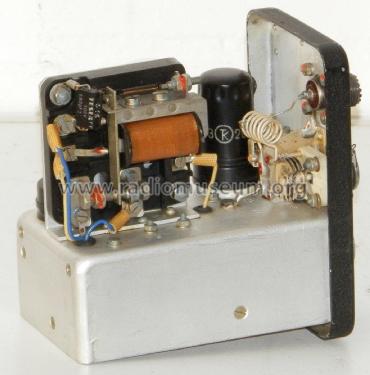

Маркерный Радиоприемник - Markierungsfunkempfänger - Marker Beacon Receiver MRP-48-P МРП-48-П
MILITARY USSR (different makers for same model)
- Country
- Soviet Union
- Manufacturer / Brand
- MILITARY USSR (different makers for same model)
- Year
- 1955 ??
- Category
- Military Receiver
- Radiomuseum.org ID
- 315839
- Number of Tubes
- 3
- Main principle
- TRF with diode detector
- Tuned circuits
- 2 FM circuit(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / 28,5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Маркерный Радиоприемник - Markierungsfunkempfänger - Marker Beacon Receiver MRP-48-P МРП-48-П - MILITARY USSR different makers
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 115 x 140 x 155 mm / 4.5 x 5.5 x 6.1 inch
- Notes
-
Teil des Instrumenten-Lande-Systems (ILS) für Flugzeuge.
Das Flugzeuggerät empfängt die von den Einflugzeichen-Sendern (vor der Landebahn angeordnet) senkrecht nach oben abgestrahlten Signale (400 Hz, 1300 Hz, 3000 Hz) auf 75 MHz. Bei Überflug eines Senders erhält der Pilot eine akustische und/oder optische Meldung.
- Net weight (2.2 lb = 1 kg)
- 1.270 kg / 2 lb 12.8 oz (2.797 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
