Model ATA Aircraft Radio Transmitter CCT-52232
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1939 ?
- Category
- Military transmitter
- Radiomuseum.org ID
- 332042

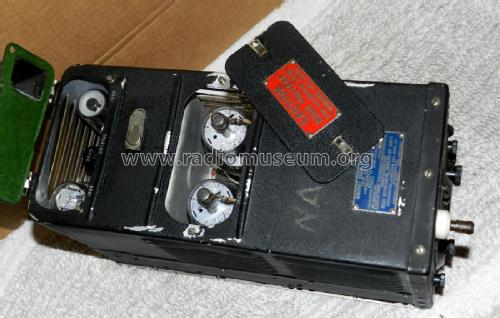

ATA Type CCT-52232 (2.1-3MHz) front view
- Number of Tubes
- 4
- Main principle
- Transmitter
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 28 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Model ATA Aircraft Radio Transmitter CCT-52232 - MILITARY U.S. different makers
- Shape
- Rack
- Notes
-
The Navy ATA transmitter was designed by Aircraft Radio Corporation and adopted in 1939 by the US Navy as a Command transmitter for CW and Voice-MCW (using a matching modulator as part of a system).
The CCT-52232 version was designed for frequencies from 2.1 to 3 MHz. Each ATA transmitter contained a plugable crystal which verified the variable frequency oscillator at a particular point on its dial and expected to correspond to the crystal frequency. The eye tube opens when the transmitter is tuned to the crystal frequency.
The Army Air Force adopted a similar system as the SCR-274N series in 1940, which subsequently was modified to the ARC-5 series.
- Net weight (2.2 lb = 1 kg)
- 8.8 lb (8 lb 12.8 oz) / 3.995 kg
- Literature/Schematics (1)
- Navy documentation
- Author
- Model page created by Rich Post. See "Data change" for further contributors.
