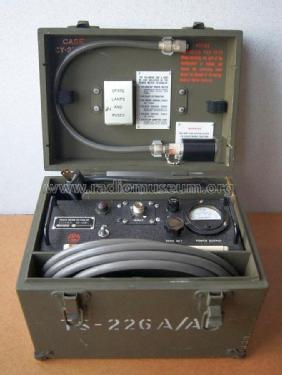

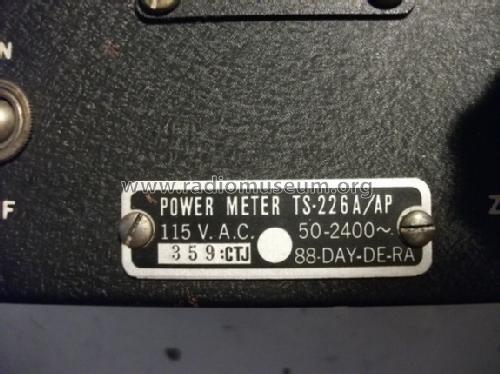

Power Meter TS-226A/AP
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1944/1945 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 221312

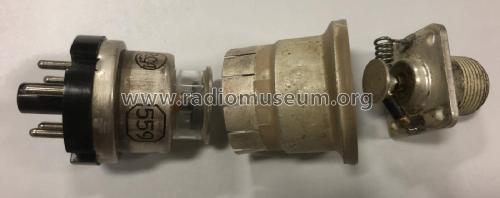

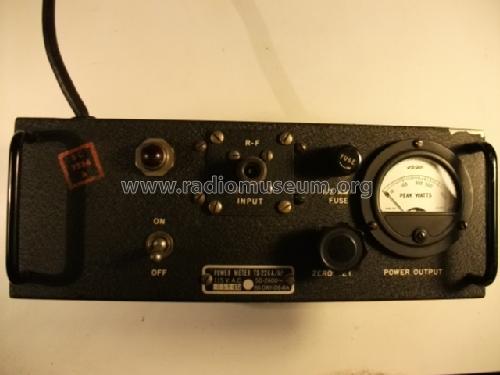

RF input connector (N type) disassembled

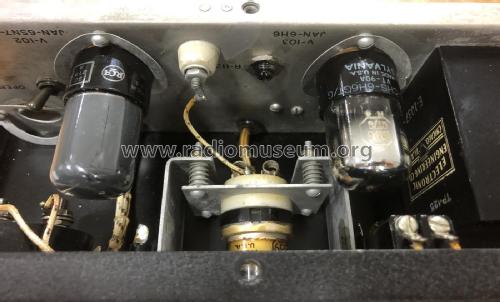

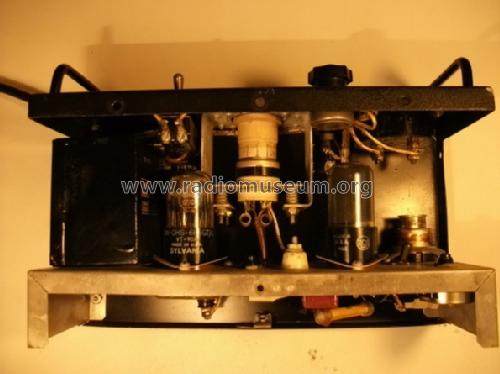

Detail of the load resistor and choke.

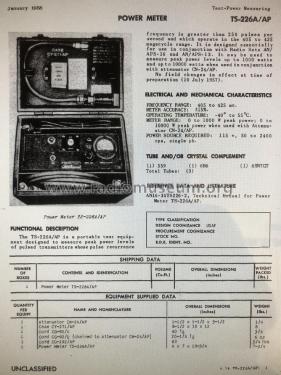

NAVSHIPS Test Equipment Directory (1958)
- Number of Tubes
- 3
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 115 Vac, 50-2400 Hz Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Power Meter TS-226A/AP - MILITARY U.S. different makers
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 270 x 155 x 110 mm / 10.6 x 6.1 x 4.3 inch
- Notes
-

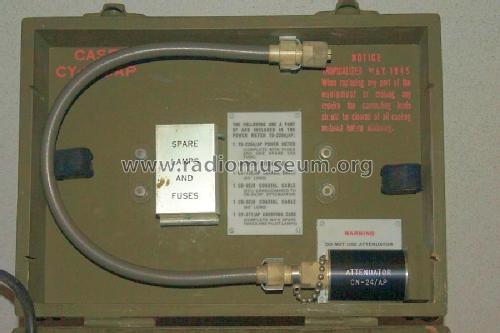

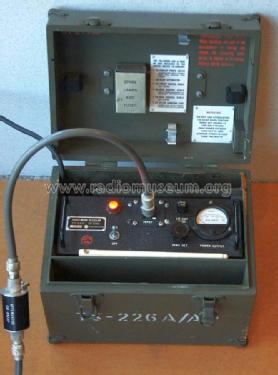

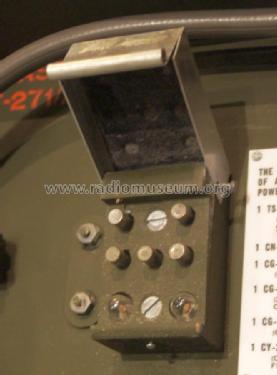

The TS-226A/AP is a portable test equipment designed to measure peak power levels of pulsed transmitters whose pulse recurrence frequency is greater than 250 pulses per second and which operate in the 405 to 425 MHz range. It is designed essentially for use in conjunction with Radio Sets AN/APS-16 and AN/APS-13. It may be used to measure peak power levels up to 1000 watts and up to 10000 watts when used in conjuction with attenuator CN-24/AP. Meter accuracy: +/-15%.
- Mentioned in
- -- Original-techn. papers. (Technical Manual AN16-35TS226-2)
- Author
- Model page created by Renzo Bettinello. See "Data change" for further contributors.
