PRC-10 RT176 / PRC-10

MILITARY U.S. (different makers for same model)

Data
Forum
Pictures
Collections

  • Year
  • 1951
  • Category
  • Military Transceiver (TRX)
  • Radiomuseum.org ID
  • 176613

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Transceiver; ZF/IF 4300 kHz; 1 AF stage(s)
  • Tuned circuits
  • 10 FM circuit(s)
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Dry Batteries / 1,5 & 6 & 67,5 & 135 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PRC-10 RT176 / PRC-10 - MILITARY U.S. different makers
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 265 x 77 x 470 mm / 10.4 x 3 x 18.5 inch
  • Notes
  • RT-176/PRC-10 is somewhat different from RT-176A/PRC-10, but the general shape, transmit power ca. 0,9 Watt, and frequency range 38-55 MHZ are the same.
    In literature PRC-10 and PRC-10A are seperated, but on the equipment the PRC-A suffix is never to be seen, only RT176 or RT-176A.
    At the top the left part of the control-panel is raised.
    VFO tuning, and a crystal calibrator stage, giving 1 MHz checkpoints.
    In the receiver part we find 2 RF-stages, 5 IF-stages, a discrimator FM-detector with 2 germanium diodes, and a squelch circuit.
    In the transmitter part we find an extra driver-circuit in comparison with the similar -A variant. The net weight is inclusive the 3,65 kg. multi-voltage battery.
  • Net weight (2.2 lb = 1 kg)
  • 8.420 kg / 18 lb 8.7 oz (18.546 lb)
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)

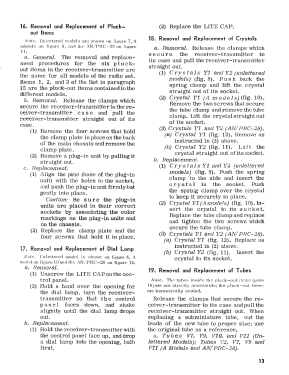

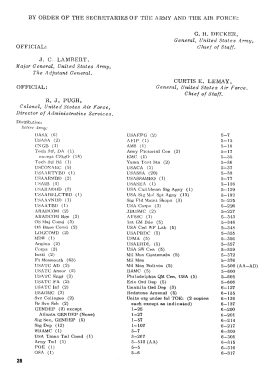

  • TM11-612. TM11-4065.
  • Author
  • Model page created by Jan Terranea. See "Data change" for further contributors.
