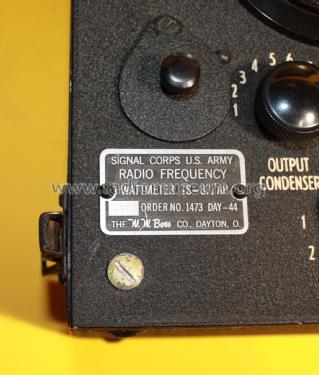

Radio Frequency Wattmeter TS-87/AP
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1944
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 358256
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Radio Frequency Wattmeter TS-87/AP - MILITARY U.S. different makers
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8 x 8 x 6 inch / 203 x 203 x 152 mm
- Notes
-
The TS-87/AP had an Army Supply Program requirement of 375 units for calendar year 1944 and was procured on an interim basis pending the procurement of RF Wattmeter TS-118/AP.
Frequency ranges from 85 MHz to 220 MHz.

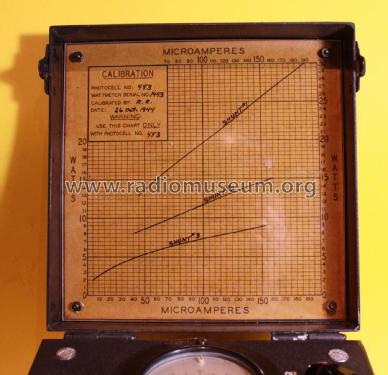

Power measurement from 2 to 30 watts in 3 ranges.
Gammes de fréquences de 85 MHz à 220 MHz.
Mesure de puissance de 2 à 30 watts en 3 gammes.
- Net weight (2.2 lb = 1 kg)
- 18 lb (18 lb 0 oz) / 8.172 kg
- Mentioned in
- -- Original-techn. papers. (Graphic Survey of Radio and Radar Equipment Used by the Army Air Forces, Y-109829, Feb. 1945)
- Author
- Model page created by Georges Werts. See "Data change" for further contributors.
