• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1943

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 280938

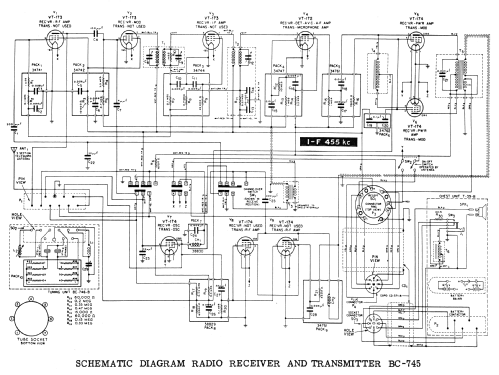

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 1S5 1T4 1T4 1T4 3S4 3S4 3S4 3S4 3S4

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Batteries / addl. power jack / 6; 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

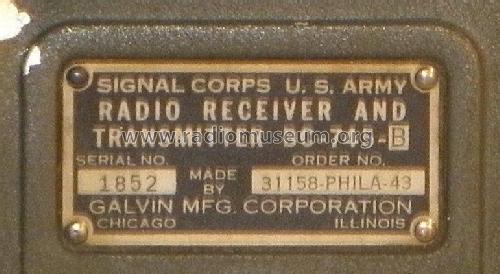

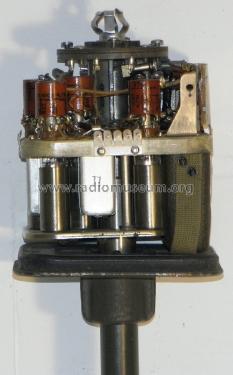

• Model: Radio Receiver and Transmitter BC-745- - MILITARY U.S. different makers

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Tragbare Sprechfunkanlage, entworfen für die Verwendung bei Kavallerie-Einheiten. Bekannt als "Pogo-Stick" bzw. "Horsey-Talky".
  Ein Kanal im Bereich 2,0 bis 6,0 MHz, Quarzsteuerung.
  Frequenzwechsel durch Austausch der TUNING UNIT BC-746.
  Amplitudenmodulation, Sendeleistung 0,8 W.
  Stromversorgung durch Trockenbatterie (1,5 V, 67 V, 120 V) oder Fahrzeug-Stromversorgung für 6 V/12 V Eingangsspannung.

• Literature/Schematics (1)
• The Surplus Handbook - Receivers and Transmitters (page 47)

• Literature/Schematics (2)
• Technical Manual Radio Set SCR-511-(*)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
