Receiver-Transmitter BC-1335A SCR-619
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1944
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 237975

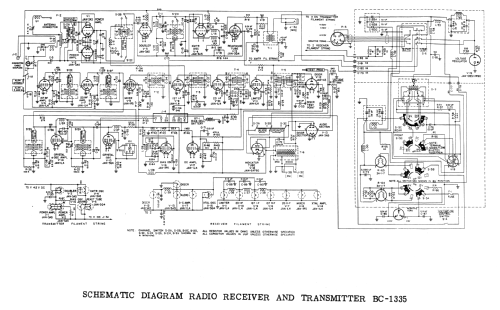

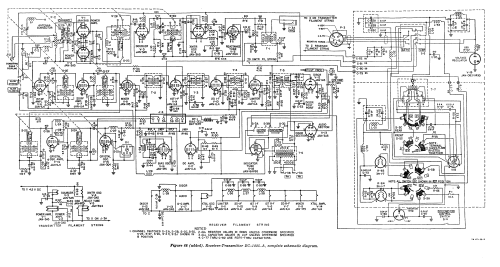

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Main principle
- Transceiver; ZF/IF 4300 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Receiver-Transmitter BC-1335A SCR-619 - MILITARY U.S. different makers
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 285 x 155 x 330 mm / 11.2 x 6.1 x 13 inch
- Notes
-
Fahrzeug-Funksprechgerät, 2 Kanäle (Steckquarze) im Bereich 27 bis 39 MHz, Frequenzmodulation, Sendeleistung 3 W.
Zerhacker-Stromversorgung eingebaut.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Mentioned in
- The Surplus Handbook - Receivers and Transmitters (page 63-64)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
