Signal Generator TS-413C/U
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1953/1954 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 113401
Calibration chart coming with the equipment
eBay 153852083202

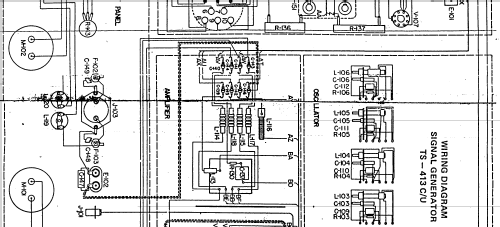

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Signal Generator TS-413C/U - MILITARY U.S. different makers
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 450 x 320 x 260 mm / 17.7 x 12.6 x 10.2 inch
- Notes
-
Signal Generator covering 75 kHz to 40 MHz in six bands. Signal may be CW or AM. Typical accuracy better than 1% may be obtained also using the internal crystal calibrator. Two meters give readings for modulation and RF output.
This military signal generator was manufactured by Harvey-Wells Electronics Inc., Southbridge, Massachusetts, for United State Air Force.
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
