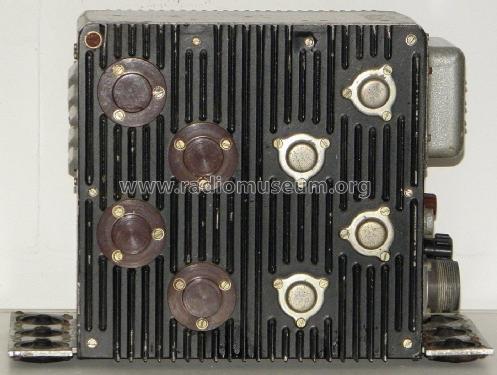

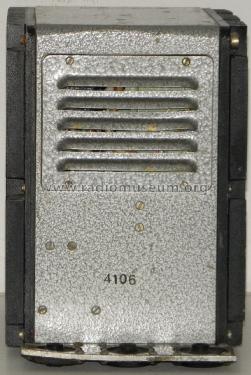

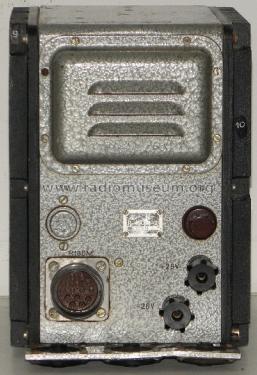

Stromversorgungsgerät R-130M-2 {Р-130М-2}

MILITARY USSR (different makers for same model)

Data
Forum
Pictures
Collections

  • Year
  • 1969 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 297144

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 26 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stromversorgungsgerät R-130M-2 {Р-130М-2} - MILITARY USSR different makers
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 175 x 245 x 330 mm / 6.9 x 9.6 x 13 inch
  • Notes

  • Erzeugt aus den 26 V der Fahrzeugbatterie alle zum Betrieb des UdSSR-Funksprechgeräts R-130M {P-130M} erforlichen Spannungen.

  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
