Test Oscillator Set AN/PRM-10
MILITARY U.S. (different makers for same model)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MILITARY U.S. (different makers for same model)
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 192874
Click on the schematic thumbnail to request the schematic as a free document.

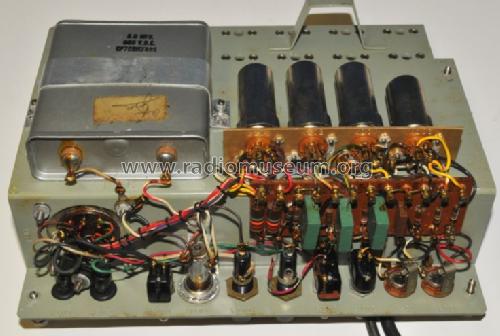

- Number of Tubes
- 4
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Test Oscillator Set AN/PRM-10 - MILITARY U.S. different makers
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 200 x 230 mm / 10.6 x 7.9 x 9.1 inch
- Notes

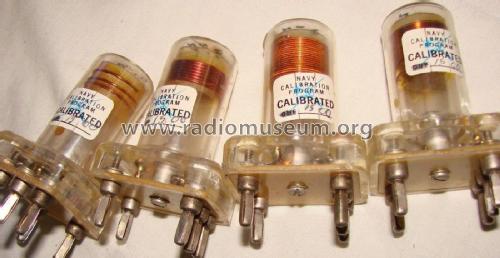

- Grid Dip Meter; covers 2-400 MHz with 7 coils.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
