Marine Receiver NS702 2207 G
MIM, Marconi International Marine; Chelmsford Essex
- Country
- Great Britain (UK)
- Manufacturer / Brand
- MIM, Marconi International Marine; Chelmsford Essex
- Year
- 1956 ?
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 327165
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet, double/triple conversion; ZF/IF 85/700 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set / DC: 24; 110; 220 / AC: 115; 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Marine Receiver NS702 2207 G - MIM, Marconi International
- Shape
- Rack
- Dimensions (WHD)
- 495 x 320 x 503 mm / 19.5 x 12.6 x 19.8 inch
- Notes
-
Suitable for mounting in a bench-type cabinet or on standard 19 inch rack and operating directly from a 110V DC supply or via a power unit with other supplies, the receiver installation will consist of a combination of the following units (depending on requirements):
1. General Purpose Marine Receiver NS702 (Type 2207E/G)
2. AC Power Unit (Type 2202A)
3. 24V DC Power Unit (Type 2203A)
4. Resistor Unit for operating from 220V DC mains
5. Rejector Unit (Type 2361A/B/C/D)
6. Switching Unit (Type 2432A)Complete coverage is provided by the receiver over the frequency band 15 kc/s to 28 Mc/s in ten ranges:
1. 15 - 25 kc/s (20,000 - 12,000 m)
2. 25 - 100 kc/s (12,000 - 3,000 m)
3. 100-200 kc/s (3,000 - 1,500 m)
4. 200 - 400 kc/s (1,500 - 750 m)
5. 400 - 800 kc/s (750 - 375 m)
6. 800 kc/s - 1.7 Mc/s (375 - 176.4 m)
7. 1.7 - 3.6 Mc/s (176.4 - 83.4 m)
8. 3.6 - 7.5 Mc/s (83.4 - 40 m)
9. 7.5 - 15 Mc/s (40 - 20 m)
10. 15.0 - 28.0 Mc/s (20 - 10.7 m)IF (Intermediate Frequency):
On ranges 1, 3, 4 and 5 an IF of 85 kc/s
On ranges 2 and ranges 6 to 10 a 1st IF of 700 kc/s and a 2nd IF of 85 kc/s
- Net weight (2.2 lb = 1 kg)
- 35.4 kg / 77 lb 15.6 oz (77.974 lb)
- Mentioned in

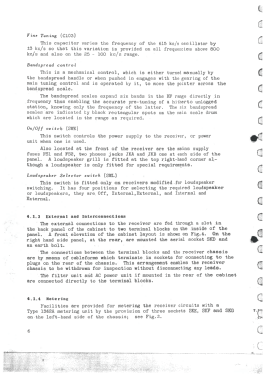

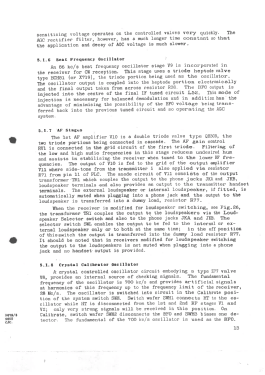

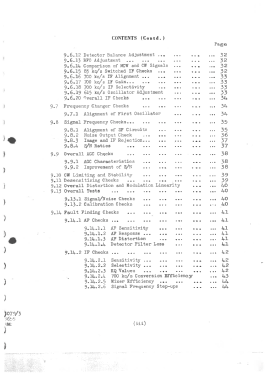

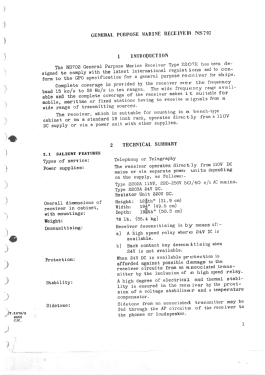

- -- Original-techn. papers. (Marconi NS702 Type 2207 Technical Handbook)
- Literature/Schematics (1)
- Wireless World (The), London (WW, 79) (October 1956)
- Author
- Model page created by Firmino Alves. See "Data change" for further contributors.
- Other Models
-
Here you find 19 models, 17 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from MIM, Marconi International Marine; Chelmsford Essex
Collections
The model Marine Receiver NS702 is part of the collections of the following members.
Forum contributions about this model: MIM, Marconi: Marine Receiver NS702 2207 G
Threads: 1 | Posts: 7
Hi! I need an advice from this forum about how can I publish (and where) an original manual (T3079-3 General Purpose Marine Receiver NS702 Type 2207E or G). In 2021 I've created and published the model mimmarconi_marine_receiver_ns702_2207_g (with the precious help of Howard Craven, Edwards † 25.10.21 and Martin Bösch), and now I've digitalized (pdf) the all manual and pictures, but I don't know where can I publish them (the text manual is about 5MB and the 24 draws (about 26,5M). Can anyone help me, please? Thanks!
Firmino Alves, 14.Jun.23
