- Country
- Switzerland
- Manufacturer / Brand
- Minerva Schweiz (Marke von Titan - Lizenzfabrikation von Minerva Österreich)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12488
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org

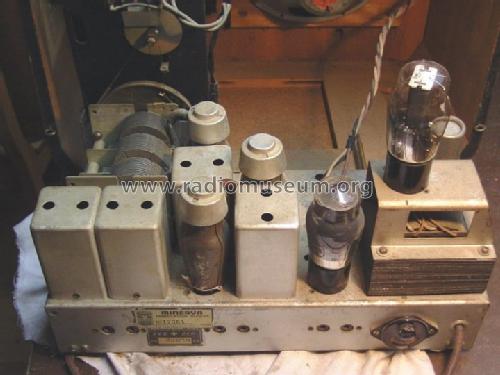

- Model: 385 - Minerva Schweiz Marke von
- Dimensions (WHD)
- 445 x 330 x 270 mm / 17.5 x 13 x 10.6 inch
- Notes
- Bei LW und bei MW gibt es jeweils eine " Normalstellung" und eine mit dem Zusatz "lokal".
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Price in first year of sale
- 310.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
