- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152387
-
- alternative name: Cozzi Luigi Dell'Aquila

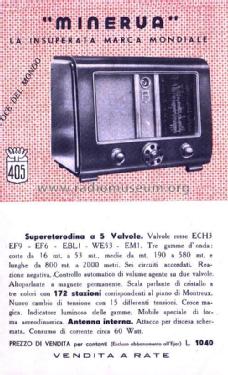

Bild aus Prospekt Minerva 1940

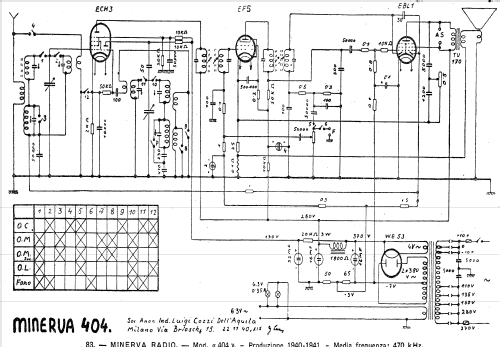

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-280 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 405 - Minerva Ital-Minerva; Milano
- Shape
- Tablemodel, low profile (big size).
- Notes
-
2 gamme OM.
Controllo di tono. Ingresso per giradischi. Presa per altoparlante supplementare derivata dal primario del trasformatore di uscita.
- Price in first year of sale
- 1,040.00 ITL
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Literature/Schematics (2)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (Vi edizione 1942)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
