- Country
- Switzerland
- Manufacturer / Brand
- Minerva Schweiz (Marke von Titan - Lizenzfabrikation von Minerva Österreich)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12533

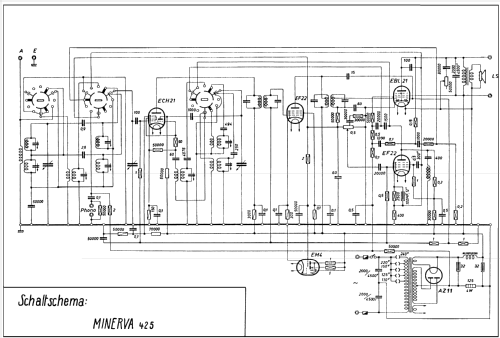

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 483 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 425 - Minerva Schweiz Marke von
- Dimensions (WHD)
- 520 x 310 x 255 mm / 20.5 x 12.2 x 10 inch
- Notes
- var.BBr.
- Price in first year of sale
- 475.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
