- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1945/1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99603
-
- alternative name: Cozzi Luigi Dell'Aquila
Mobile apparentemente non originale.

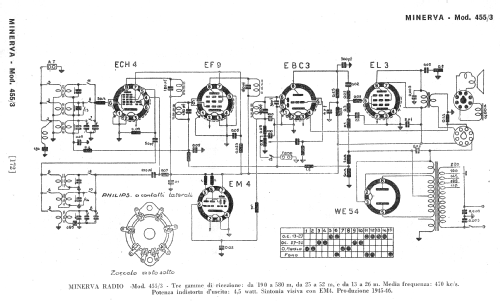

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 455/3 - Minerva Ital-Minerva; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 370 x 280 mm / 22.4 x 14.6 x 11 inch
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 172)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
