- Country
- Switzerland
- Manufacturer / Brand
- Minerva Schweiz (Marke von Titan - Lizenzfabrikation von Minerva Österreich)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 12573
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Material
- Wooden case
- from Radiomuseum.org

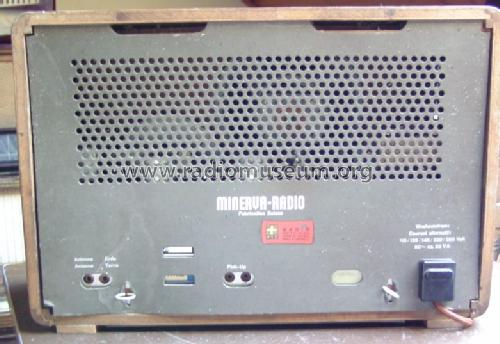

- Model: 472 - Minerva Schweiz Marke von
- Dimensions (WHD)
- 450 x 310 x 220 mm / 17.7 x 12.2 x 8.7 inch
- Net weight (2.2 lb = 1 kg)
- 9.7 kg / 21 lb 5.9 oz (21.366 lb)
- Price in first year of sale
- 395.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die Tungsram-Tabellen führen das Modell auf.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
