• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106187

• • alternative name: Cozzi Luigi Dell'Aquila

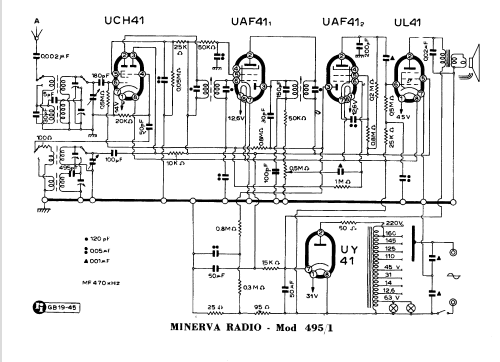

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UAF41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

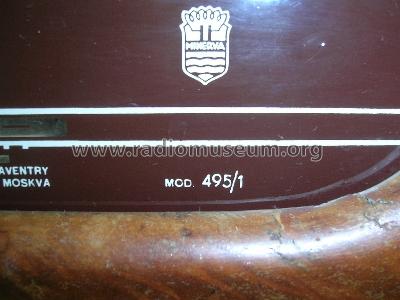

• Model: 495/1 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 310 x 210 mm / 18.9 x 12.2 x 8.3 inch

• Notes
• Alimentazione con autotrasformatore.

• Source of data
• Guida Pratica Antique Radio V (2003)

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
