• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100149

• • alternative name: Cozzi Luigi Dell'Aquila

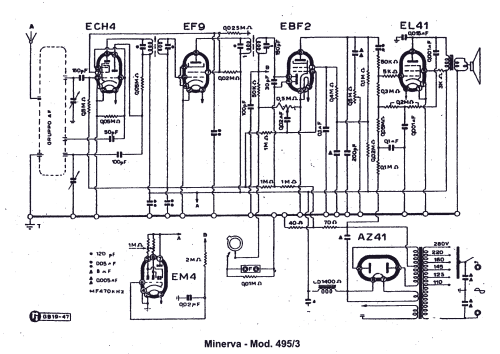

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EBF2 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-280 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

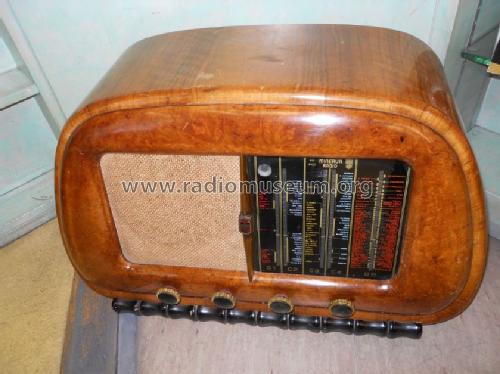

• Model: 495/3 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 390 x 300 mm / 25.2 x 15.4 x 11.8 inch

• Notes
• Gamme d'onda: medie e 4 gamme d'onde corte.
  Wave bands: BC, 4x SW.

• Mentioned in
• A. Battocchio, La bella radio, Mosè Edizioni

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
