- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99608
-
- alternative name: Cozzi Luigi Dell'Aquila

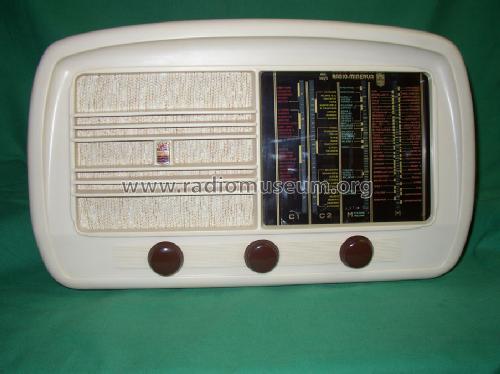

Foto per cortesia del venditore orsomaria62
ebay 183783530869.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 505/2 - Minerva Ital-Minerva; Milano
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- Mobile in legno con frontale in bachelite bianca. Simile al Minerva 505/1 (cambia la disposizione delle prese gruppo AF).
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 176)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
