- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104379
-
- alternative name: Cozzi Luigi Dell'Aquila
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

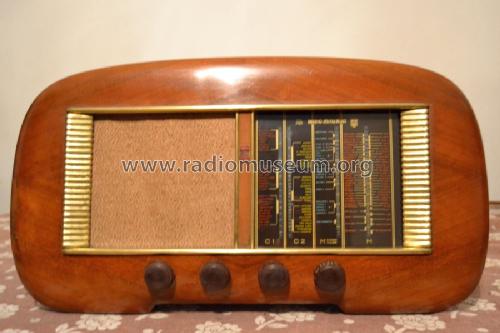

- Model: 515/5 - Minerva Ital-Minerva; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 320 x 210 mm / 23.2 x 12.6 x 8.3 inch
- Source of data
- Guida Pratica Antique Radio V (2003)
- Literature/Schematics (1)
- Collezione di Schemi, Scuola Radio Elettra 1953
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
