- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232259
-
- alternative name: Cozzi Luigi Dell'Aquila
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org

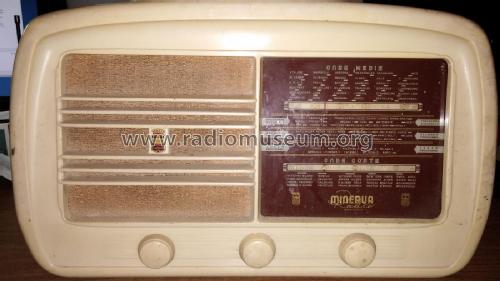

- Model: 535/2 - Minerva Ital-Minerva; Milano
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 475 x 285 x 175 mm / 18.7 x 11.2 x 6.9 inch
- Author
- Model page created by Carlo Cossa. See "Data change" for further contributors.
