• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152383

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6TE8GT 6SK7GT 6SQ7GT 6V6GT 6E5GT 5Y3GR

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 3.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

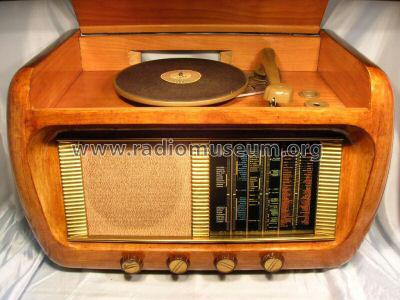

• Model: Adige 515/4 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel, low profile (big size).

• Notes

• Giradischi 78 giri

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
