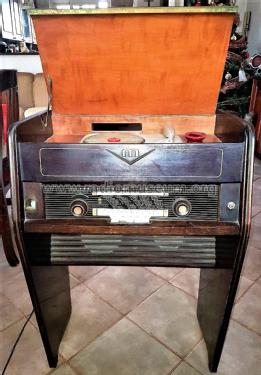

Argentera 576/10 FC
Minerva (Ital-Minerva); Milano
- Country
- Italy
- Manufacturer / Brand
- Minerva (Ital-Minerva); Milano
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152375
-
- alternative name: Cozzi Luigi Dell'Aquila
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Argentera 576/10 FC - Minerva Ital-Minerva; Milano
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 580 x 860 x 370 mm / 22.8 x 33.9 x 14.6 inch
- Notes
- Giradischi 4 velocità.
4 speed record player.
- Net weight (2.2 lb = 1 kg)
- 22 kg / 48 lb 7.3 oz (48.458 lb)
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
