• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152374

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 UF89 UABC80 EM81 UL84 EZ81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 3.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

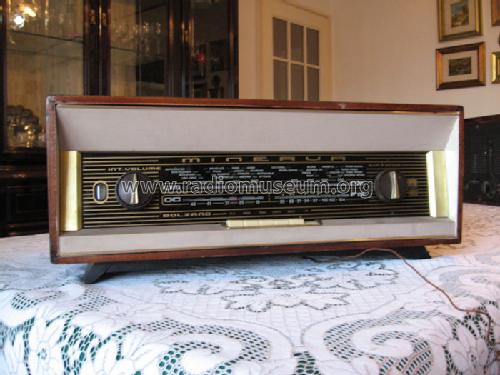

• Model: Bolzano 616/1 - Minerva Ital-Minerva; Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 240 x 230 mm / 21.7 x 9.4 x 9.1 inch

• Notes
• Gamme d'onda: medie, corte, FM, TV.
  Wave bands: BC, SW, FM, TV.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
