• Country
• Italy

• Manufacturer / Brand
• Minerva (Ital-Minerva); Milano

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176148

• • alternative name: Cozzi Luigi Dell'Aquila

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

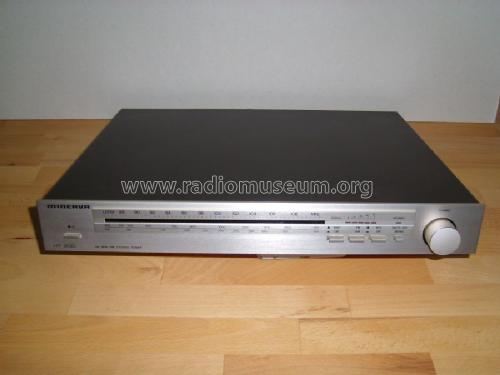

• Model: HT-200 - Minerva Ital-Minerva; Milano

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 60 x 330 mm / 16.5 x 2.4 x 13 inch

• Notes

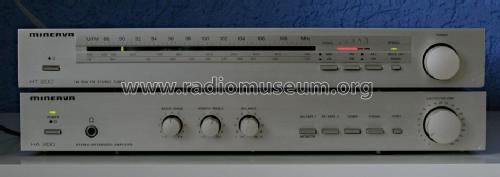

• Komponente aus dem HiFi-Turm 200.
  HK-200 = Kasettendeck
  HT-200 = Tuner
  HA-200 = Amplifier (Verstärker)

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Thomas Jennen. See "Data change" for further contributors.
